Characteristics

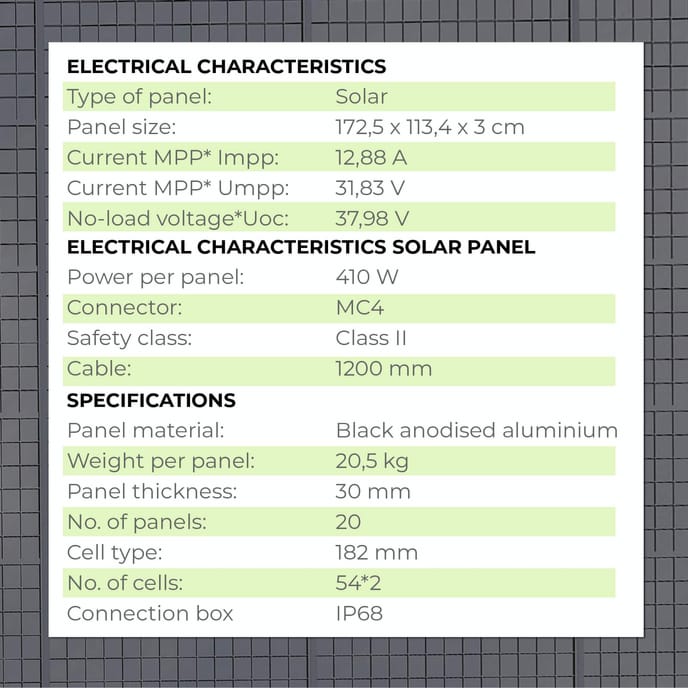

ELECTRICAL CHARACTERISTICS
- Type of panel: Solar
- Panel measure: 172,5 x 113,4 x 3 cm
- Current MPP*Impp: 12,88 A
- Current MPP*Umpp: 31,83 V
- No-load voltage*Uoc: 37,98 V
ELECTRICAL CHARACTERISTICS SOLAR PANEL
- Power per panel: 410 W
- Connector: MC4
- Security class: Class II
- Cable: 1200 mm
SPECIFICATIONS
- Panel material: Black anodised aluminium
- Weight per panel: 20,5 kg
- Panel thickness: 30 mm
- Nº panels: 12
- Cell type: 182
- Nº cells: 54*2
- Junction box: IP68

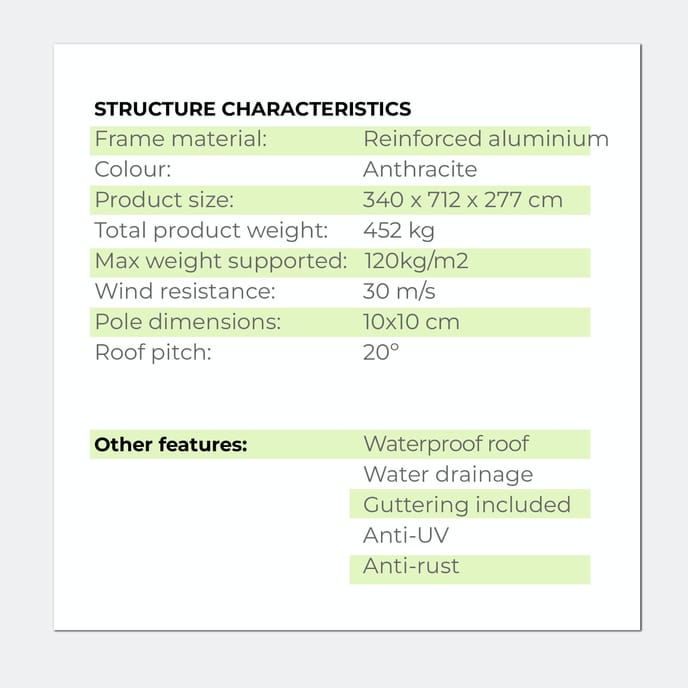

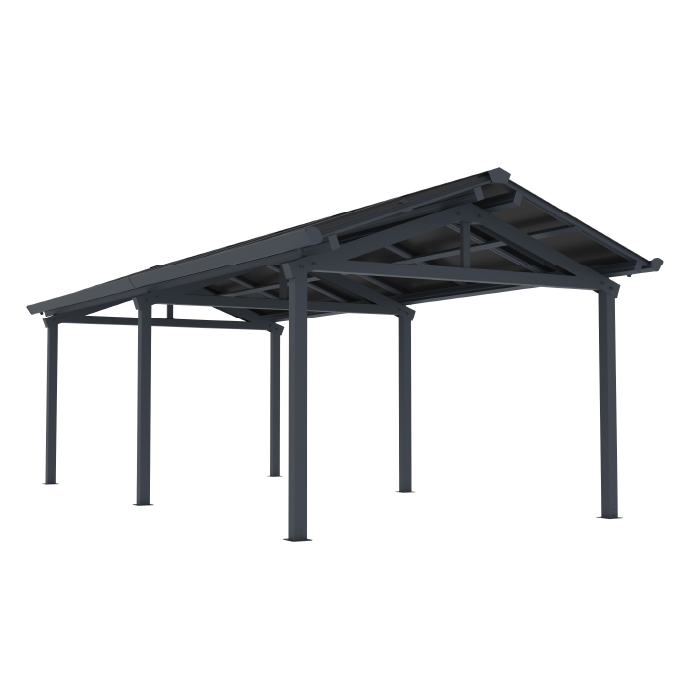

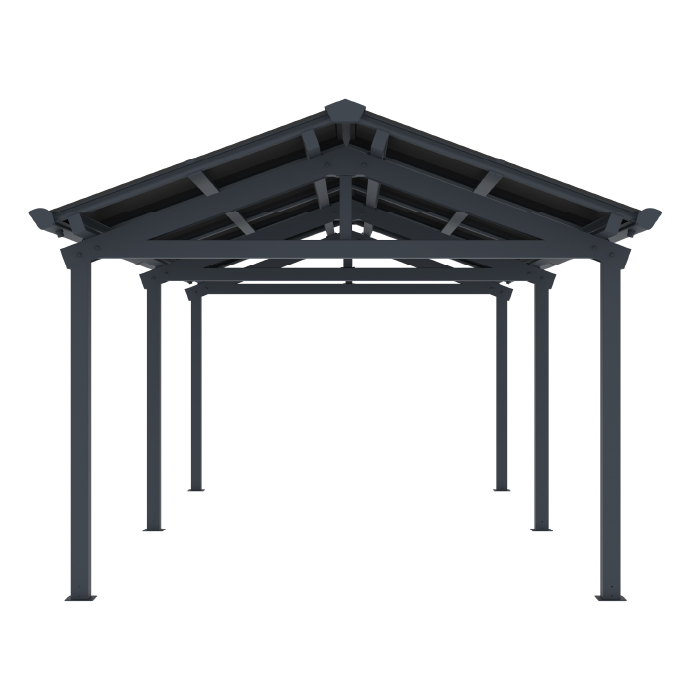

STRUCTURE CHARACTERISTICS
- Structural material: Reinforced aluminium
- Color: Anthracite

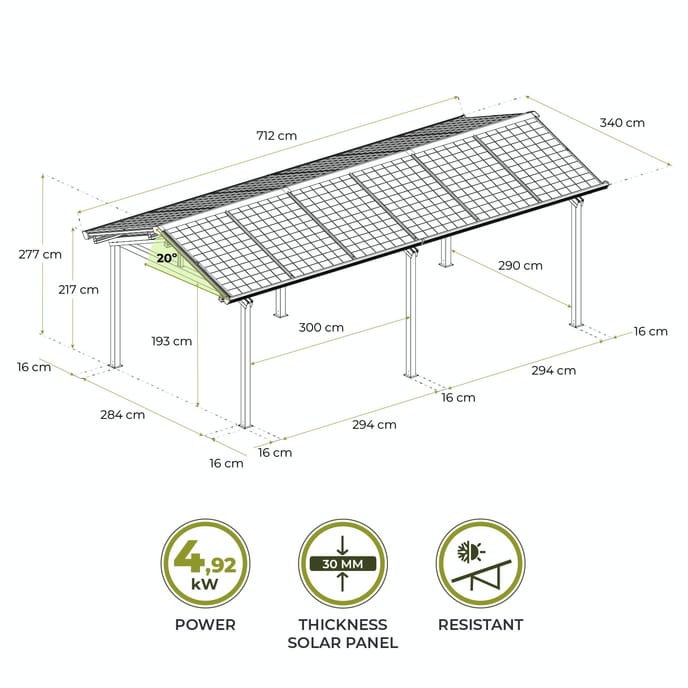

- Product size: 340 x 712 x 277 cm
- Total product weight: 452 kg
- Max. weight supported 120 kg/m2
- Wind resistance: 30 m/s
- Pole dimensions: 10 x 10 cm
- Roof pitch: 20º
OTHER CHARACTERISTICS
- Waterproof roof

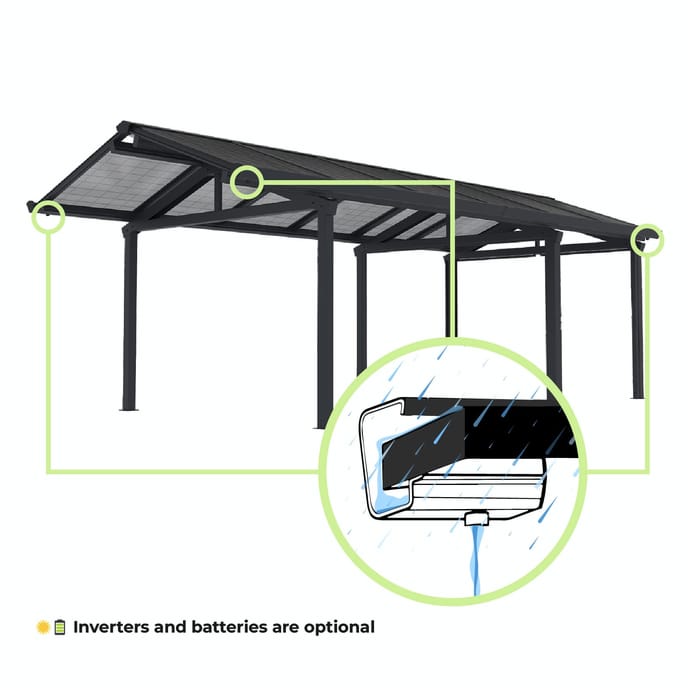

- Water drainage
- Gutter included
- Anti UV
- Anti oxide
